SLP 99R
Urinal radar flushing unit made to order (with mounting box), 24V DC
Przepraszamy, ale ten produkt nie znajduje się już w naszej ofercie. Spróbuj wybrać inny z naszej oferty z naszej oferty.
Właściwości
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
- adjustable flushing time from 0,5 to 15,5 sec.
- adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
- parameters adjustment by SLD 04 remote control (without the necessity to dismantle the urinal from the wall)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
- TYPE OF URINAL MUST BE MENTIONED IN THE ORDER!
- Numer artykułu: 01994
Interesuje mnie więcej informacji:
Specyfikacja dostawy

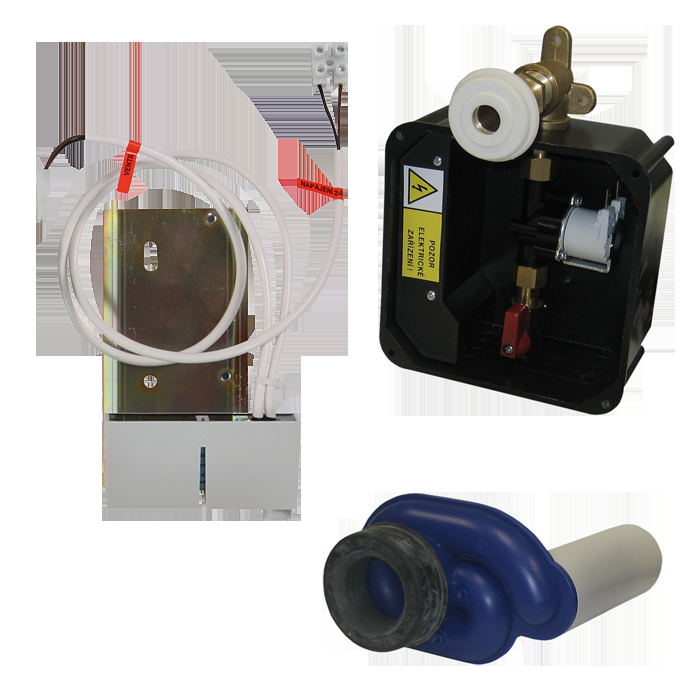

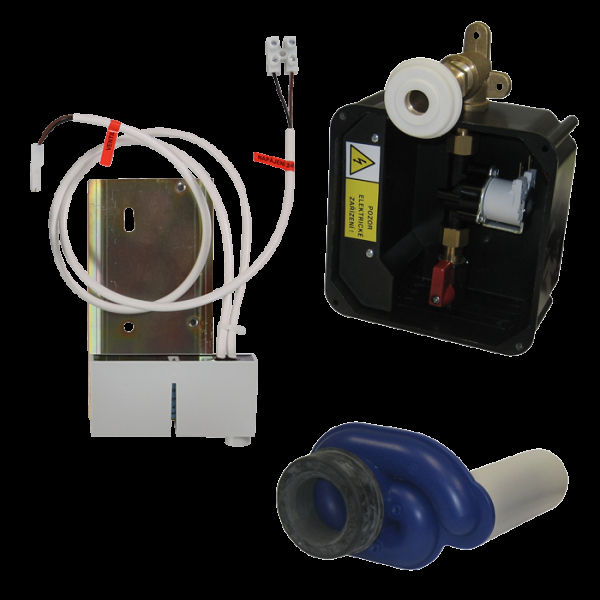

SLP 99R - supply No. 01994 - radar flushing unit, electromagnetic valve, innlet fitting
Parametry techniczne
Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 24V DC
Power input: 5 W
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Operating voltage: 24V DC
Power input: 5 W
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber seal
Akcesoria
