SLP 36RZ

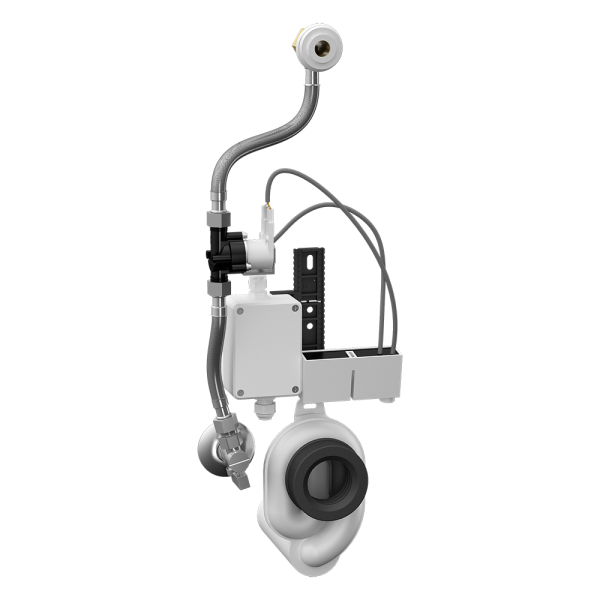

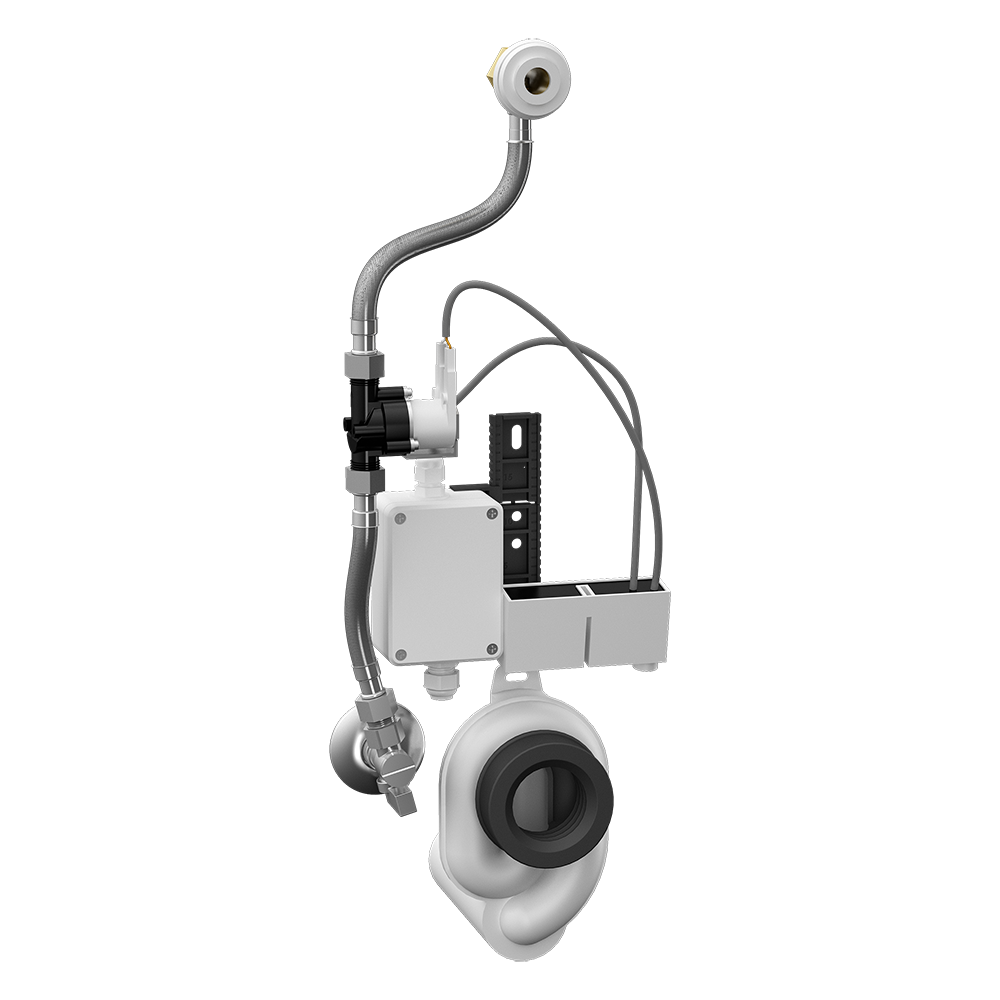

Radar flushing unit on the mounting rail for urinal Golf with integrated power supply, 230V AC

Właściwości

  • economy flushing by 1 liter of water
  • radar flushing unit for urinal Golf (Ideal Standard)
  • easy installation by the help of paper drill template
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid (urine) is flowing through)
  • adjustable flushing time from 0,5 to 15,5 seconds
  • adjustable minimum use time (min. time of urinal direct using) from 6 to 15 sec.
  • parameters adjustment by remote control SLD 04 (without the necessity to dismantle the urinal from the wall)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball stop valve
  • radar flushing unit recharges a water to the siphon after each flushing
  • Numer artykułu: 01365
Interesuje mnie więcej informacji:

Specyfikacja dostawy

SLP 36RZ - code nr. 01365 - automatic urinal radar flushing unit with an integrated power supply on the mounting rail; electromagnetic valve (1 pcs.); connecting hose; angle valve with a filter; special outlet fitting with a rubber seal; waste siphon; paper drill template; mounting set

Parametry techniczne

Zasilanie: 230V AC
Operating voltage: 230V AC/50Hz
Power input: 5 W
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber seal

Plik do ściągnięcia
